Product details

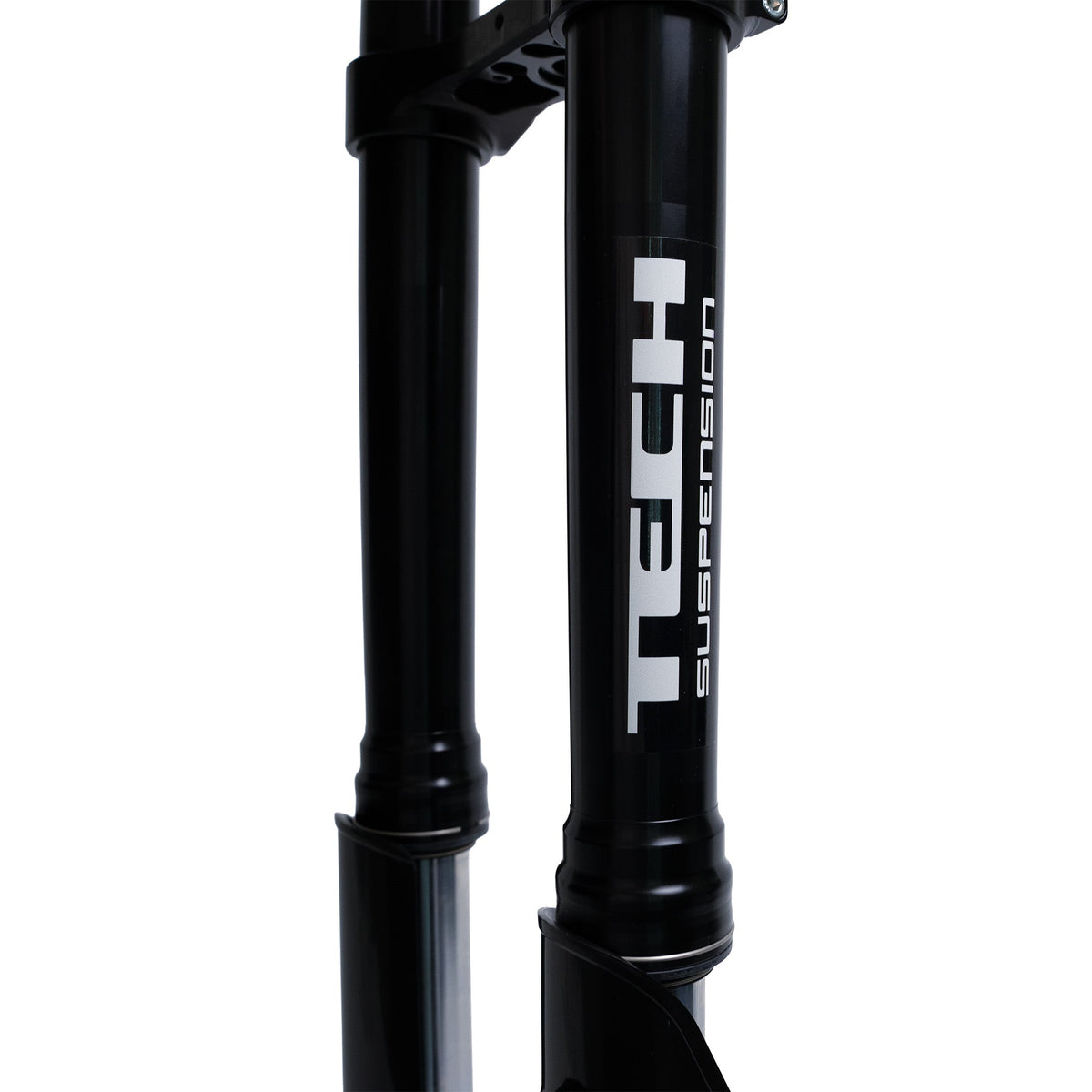

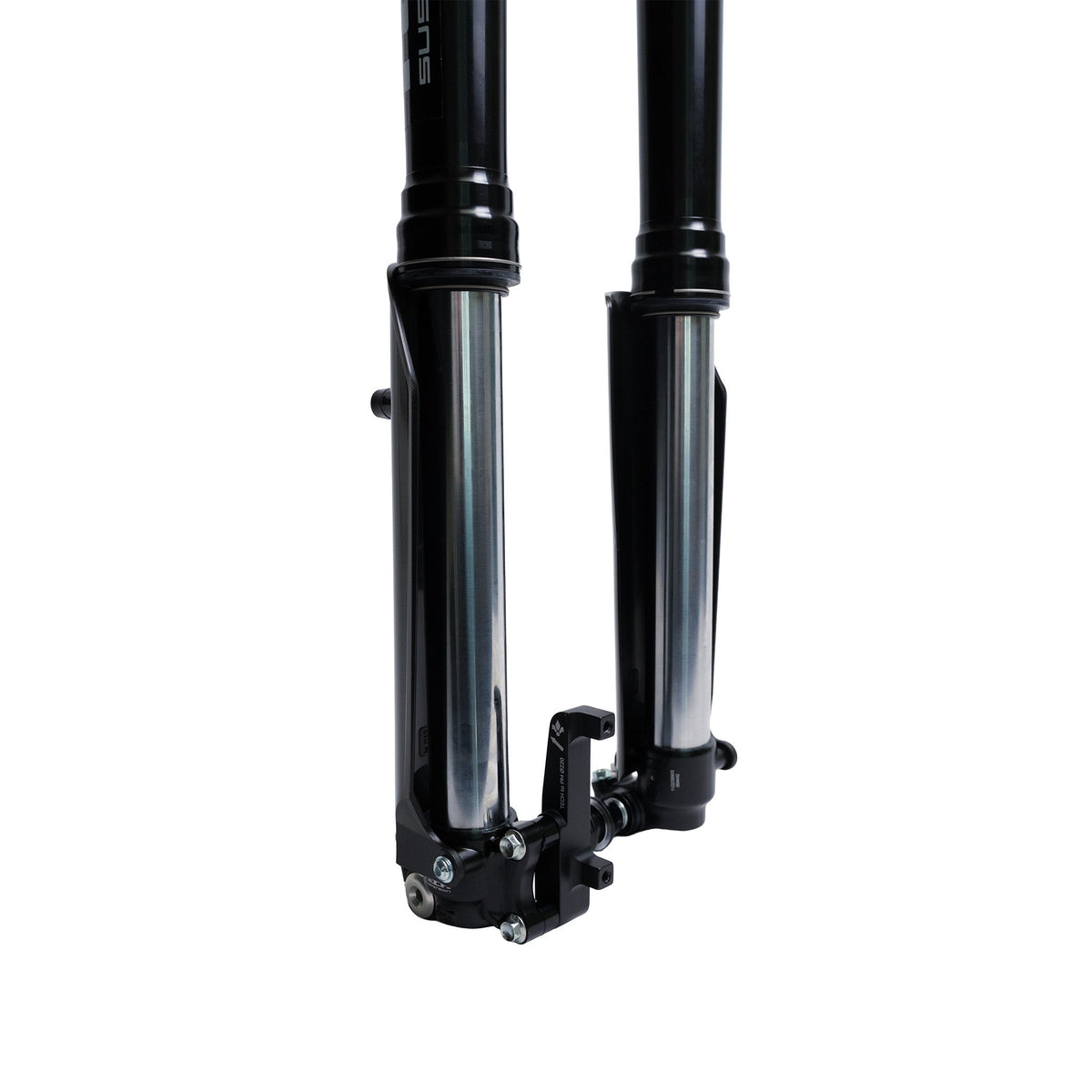

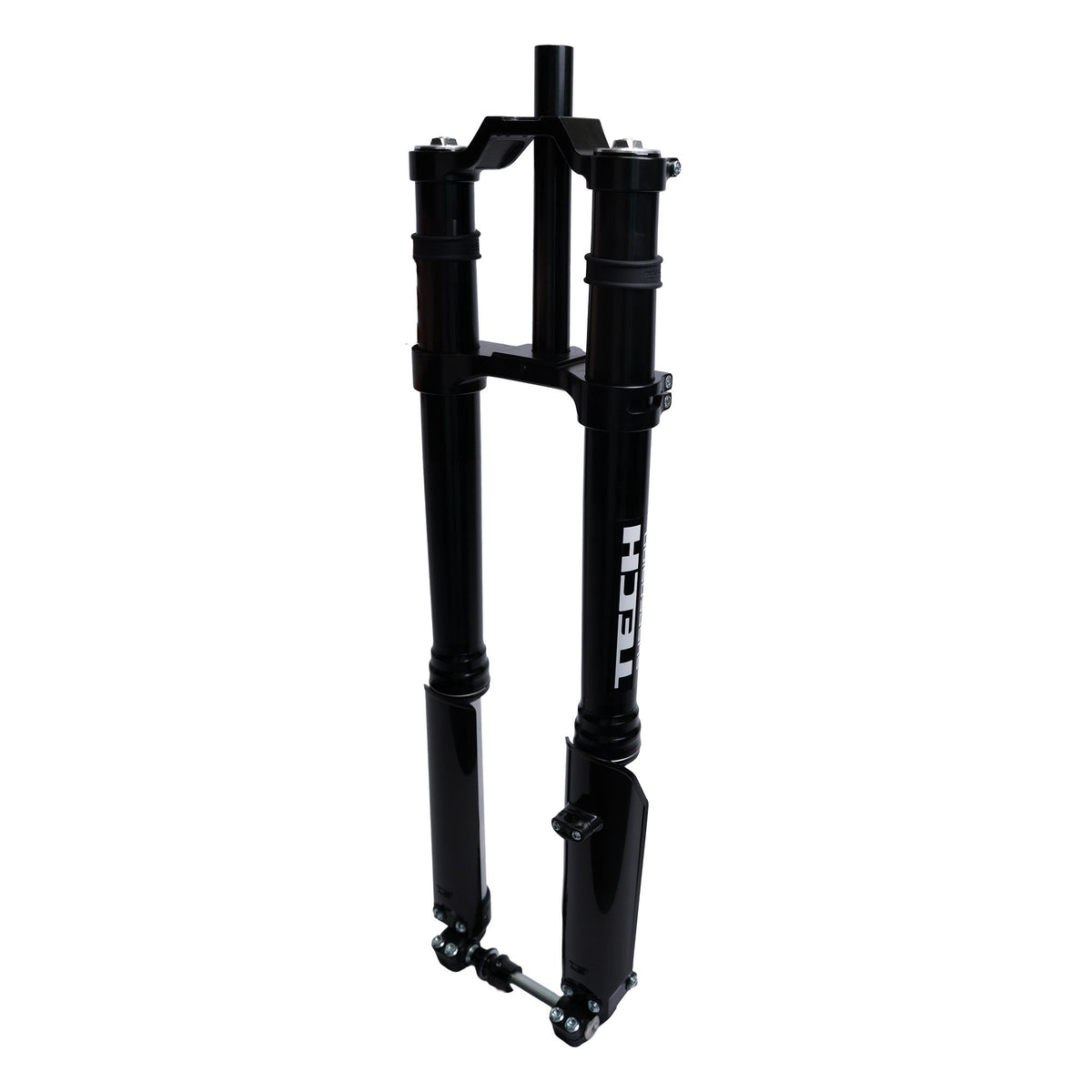

Formula Tech Suspension E39 Fork
Engineered to enhance the performance of lightweight E-Motos.
MOTORCYCLE DESIGN
- 39mm stanchions and an upside-down, dual-crown design provide support and precise steering without flexing under heavy impacts.
- Dual coil springs and hydraulic dampers designed and tuned for the weight and speed of lightweight E-Motos.
PERFORMANCE & ADJUSTABILITY
- 230mm travel with easy-to-use high/low-speed compression and rebound adjustments.
- Factory-tuned for average weight riders of 60-80kgs and all-round riding using a medium spring rate.
- Five different spring combinations are available to cater for all rider weights and types of riding.
COMPATIBILITY

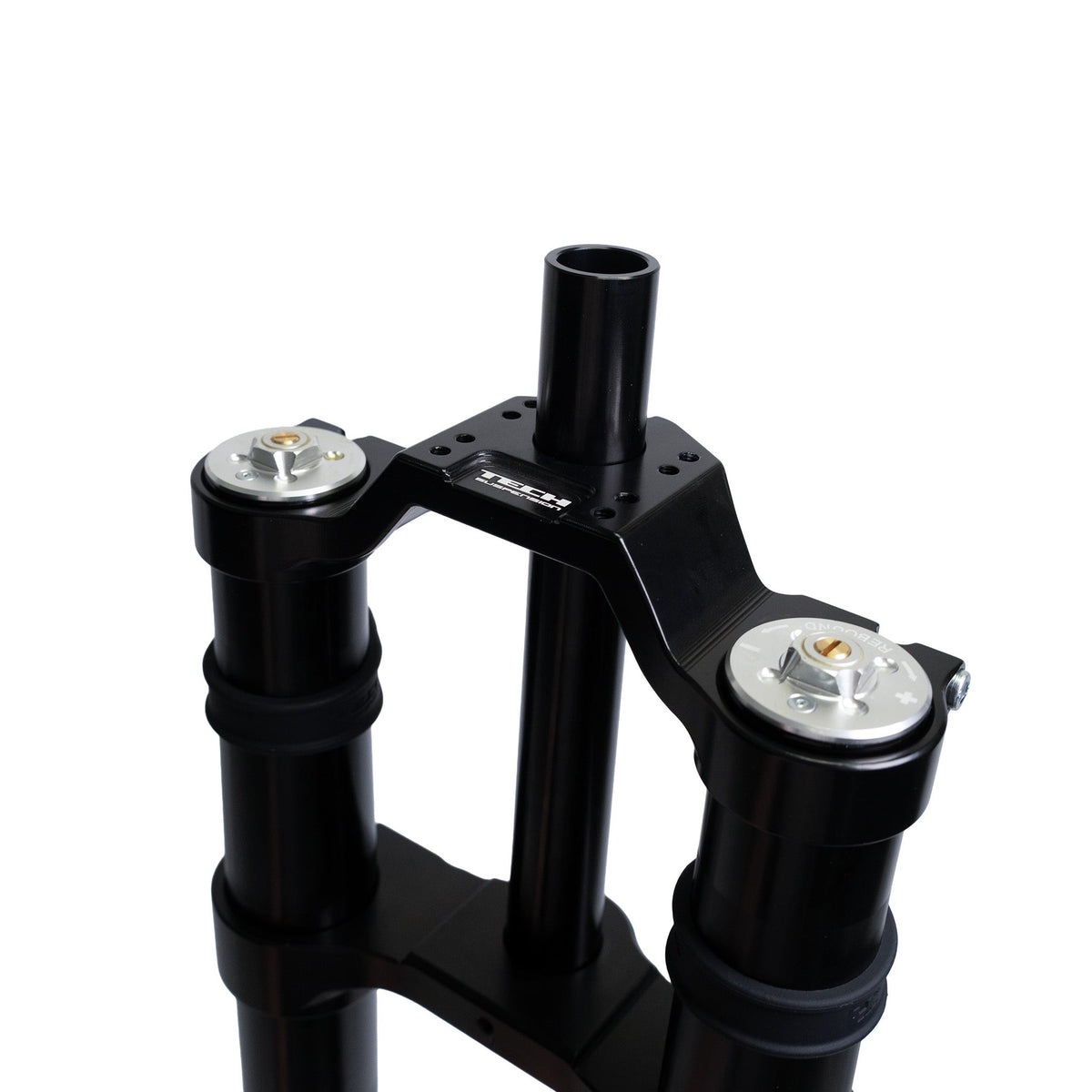

- Includes triple clamps, axle, and wheel spacer for direct installation on all lightweight E-Moto brands*.
- Standard drop crown supports 21″ wheels.
- PM caliper mount supports 220mm brake discs.
DURABILITY
- Anodized aluminum outer tubes and hard-chrome-treated steel stanchions resist wear in demanding conditions.
- Low-friction bushings, heavy-duty seals, and premium oil ensure consistent performance.
- Plastic fork guards included for stanchion protection.
Tech Specs
- Stanchion Tubes: 39mm diameter Hard Plated Chromoly Steel
- External adjustment: Rebound + compression
- Overall Length: 770 mm
- Axle to Crown: +/- 635mm
- Stroke: 230mm
- Weight: 14.8lbs
- Stanchion tubes: titanium black coating
Compatible with Surron Light Bee X/S, Talaria Sting MX3/4, and E-Ride Pro S/SS 2.0 models.
SKU: OS-1153-FORK-FORM
